2/3-Phase DOL Motor Starter Control Panel with GSM 5G Mobile Starter 3 HP - 7.5 HP (Auto Start, Dry Run Protection, Overload and Underload Protection)
2/3-Phase DOL Motor Starter Control Panel with GSM 5G Mobile Starter 3 HP - 7.5 HP (Auto Start, Dry Run Protection, Overload and Underload Protection)
3-Phase DOL Motor Starter Control Panel with GSM 5G Mobile Starter 1 HP to 7.5 HP
3 Phase Motor Starter for 3/5/7.5 HP, Heavy Load, 280-415V, 50 Hz
- MOTOR HP : 1 Hp to 7.5 Hp
- Minimum Operating Voltage : 280 v
- Rated Voltage : 415 V
- Voltage : 440V
- Overload relay range (A) : 20-32A
- Starter Type : DOL Starter
- Automation Grade : Semi-Automatic
- Run Type : Dry Run
- THREE POLE MCB Required : 16 AMP
- Suitable for Agricultural Submersible Pumpset (Double Cable) Powered Motor
Features:

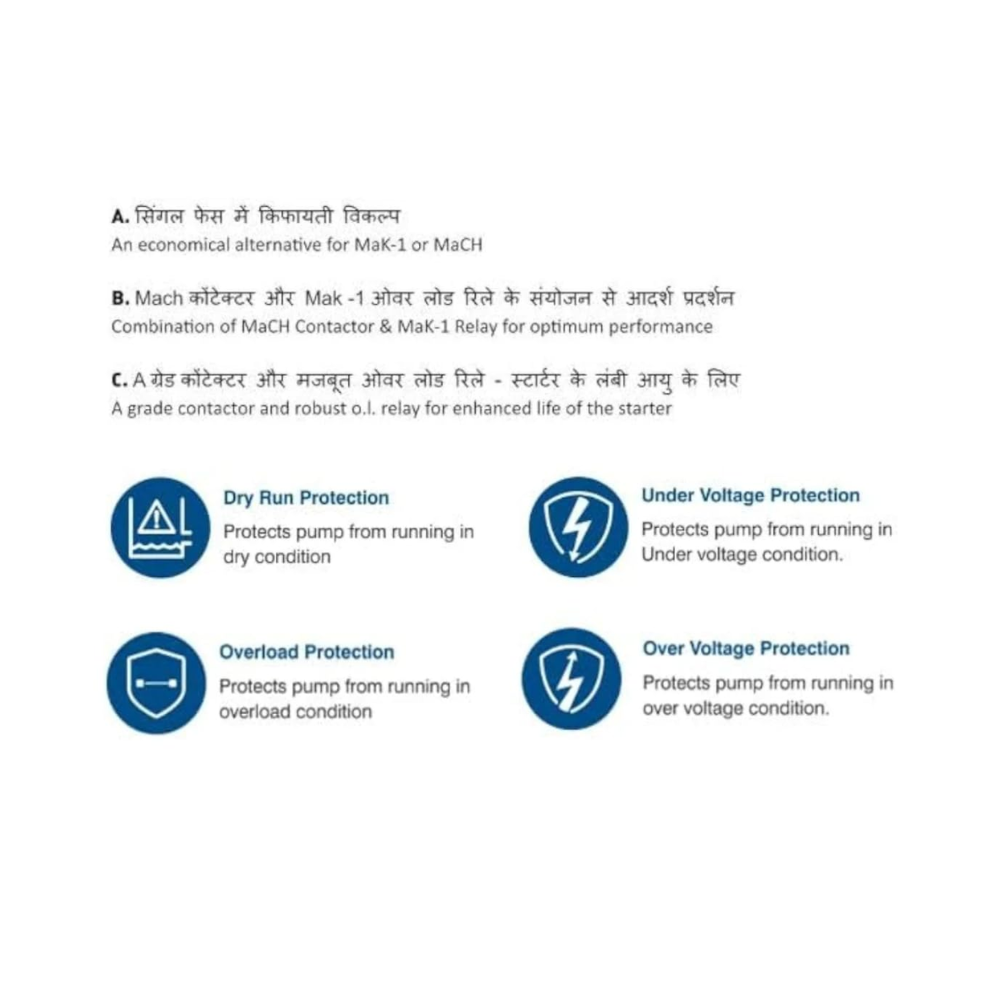

- COMPREHENSIVE PROTECTION: Features dry run protection, overload protection, and underload protection for complete motor safety
- MOBILE CONTROL: Includes wireless mobile control capability with integrated antenna for easy operation and monitoring. Can be operated by Calling the Sim inserted in the device. Separate Manual will be provided for activation of the Mobile Controller along with activation code.
- MONITORING DISPLAY: Equipped with voltage and ampere meters for real-time monitoring of motor performance parameters

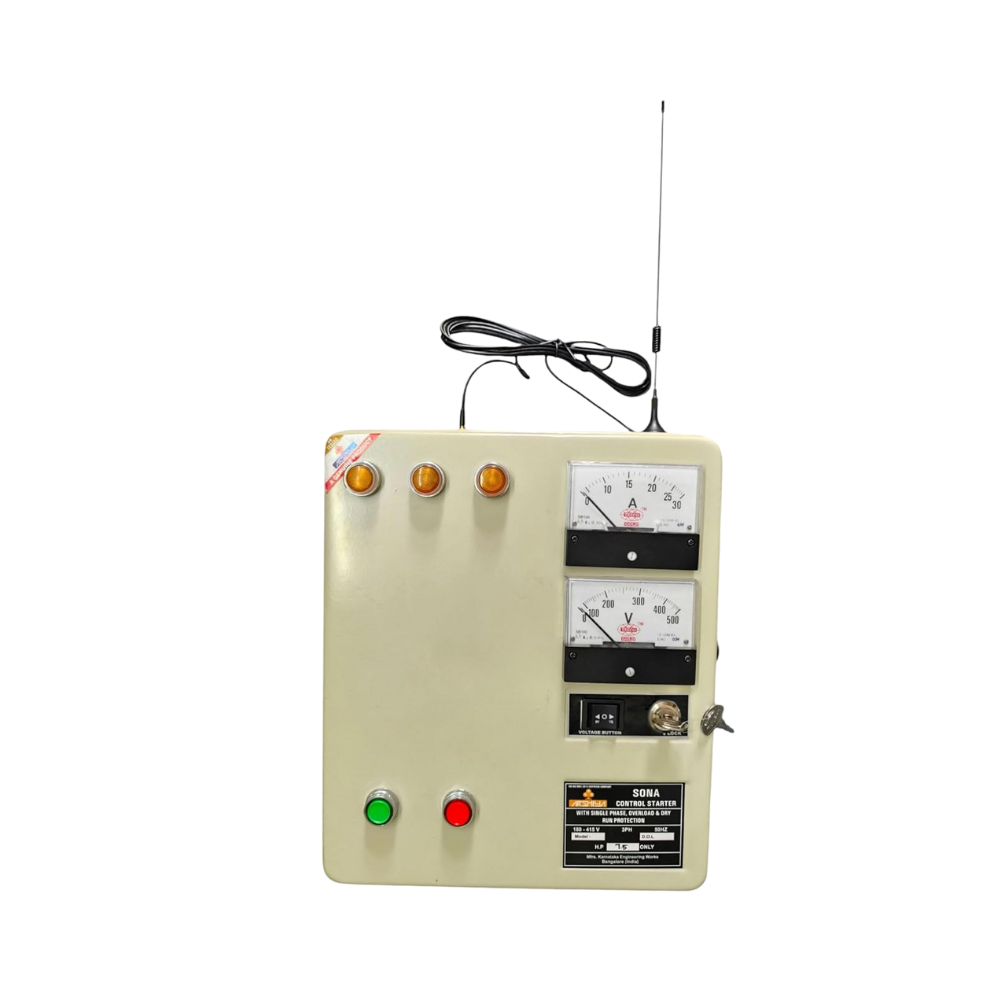

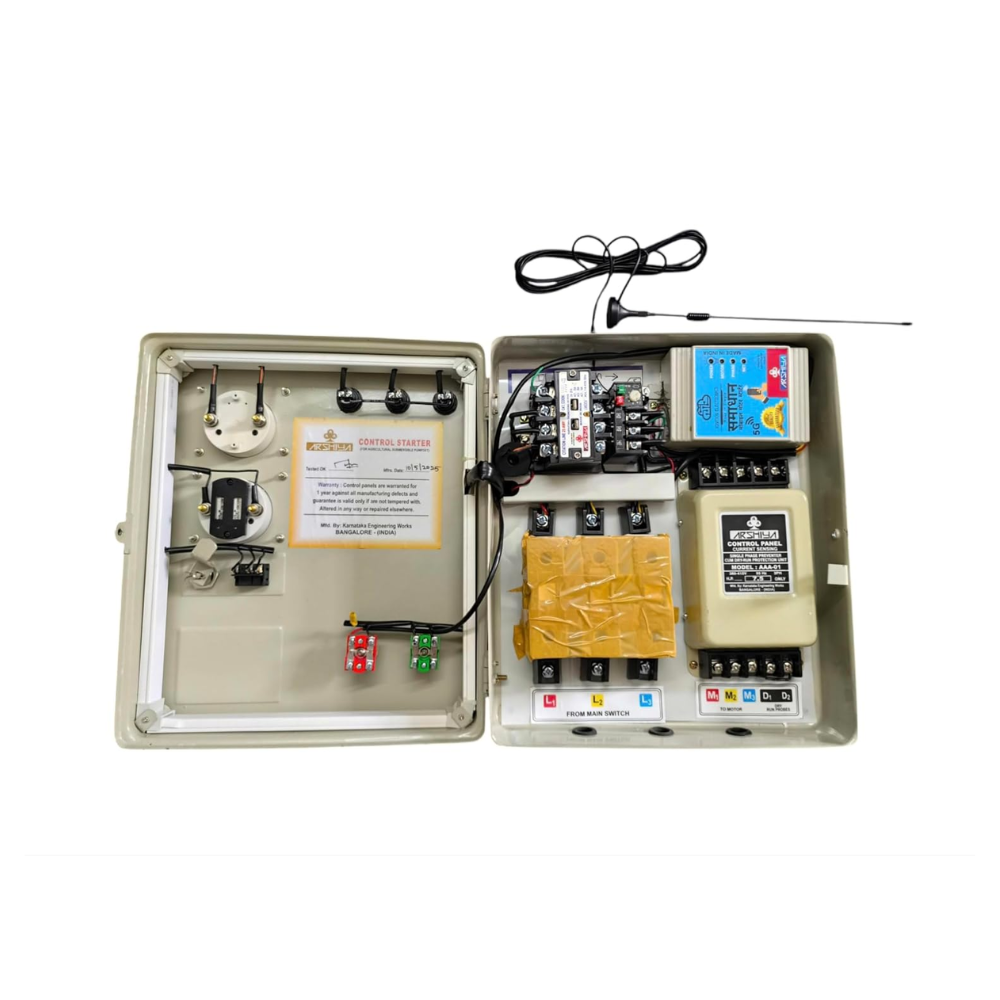

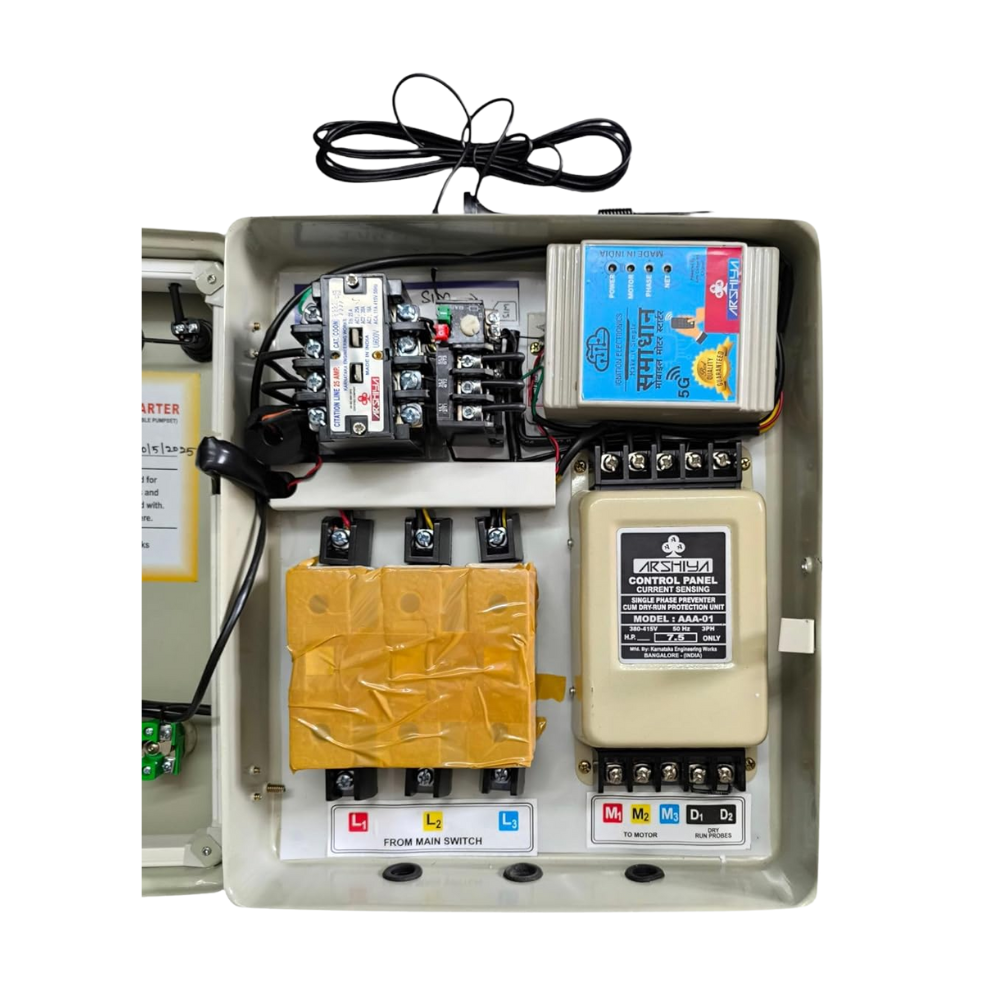

- CONTROL PANEL: Robust DOL (Direct Online) starter panel with indicator lights and control buttons for manual operation
- ELECTRICAL SPECIFICATIONS: Three-phase motor control system with phase protection and terminal connections for secure wiring
- AUTO START: The mobile Controller device comes with Auto Start Unit. When power is back, it will auto start the Motor in 30 seconds.
- WARRANTY: Comes with 1 Year Warranty for the Control Panel and the Mobile Starter Device.
Legal disclaimer:
Please exercise all caution while installing, servicing or repairing this product as you ought to do for any electrical product. It is best to have expertise or let an qualified electrician carry out the same.
Available in variations - 3 HP ,5 HP and 7.5 HP
